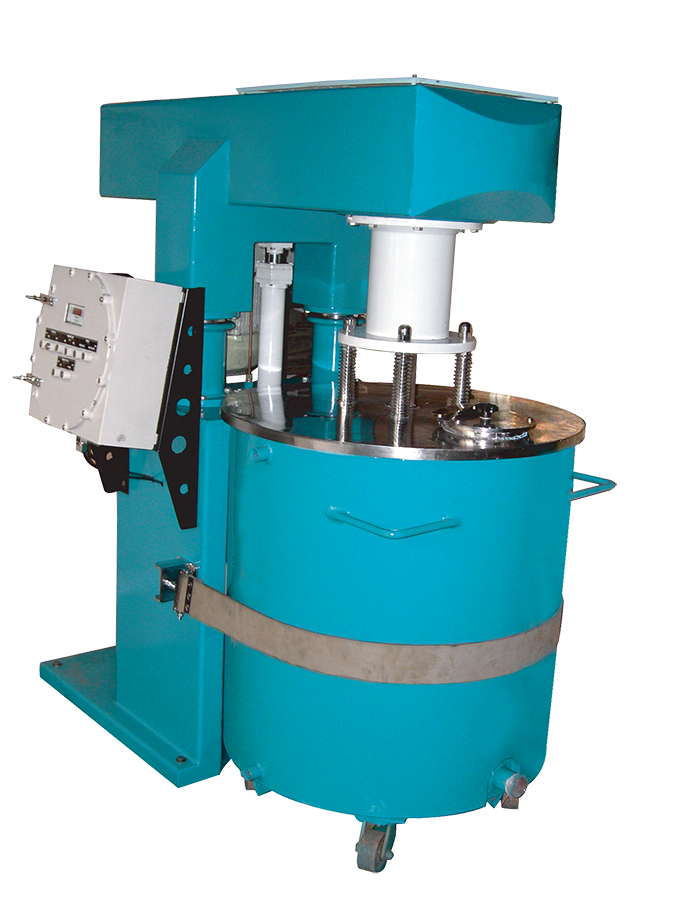

basket mill

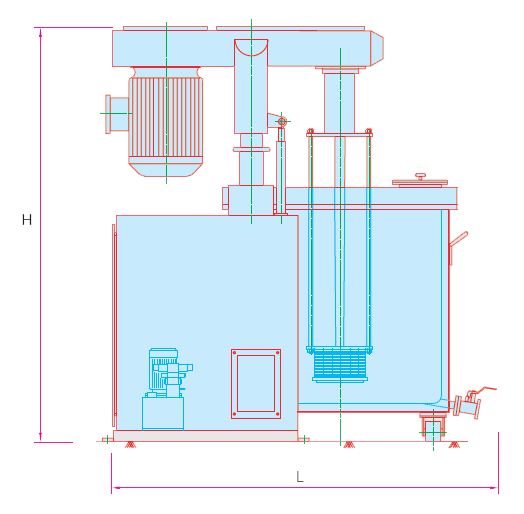

TECHNICAL DATA - BASKET MILL

Model FEBAS	Max. Operating Volume	Total Volume(Approx.)	Motor Rating		Vessel Dimension		Machine Weight	Overall Dimension
Unit	LTRS	LTRS	HP	HP	MM	MM	KG	MM	MM	MM
50	50	75	5	1	450	490	600	1400	550	1150
150	150	225	10	1	640	700	1000	1750	750	1500
300	300	400	20	1	850	920	1500	2000	850	1750
500	500	650	30	1.5	900	1000	1750	2500	1000	2050
1000	1000	1200	40	2	1100	1250	2000	2800	1200	2400

* HP depends on viscosity & density of millbase.

DESIGN HIGHLIGHTS

Jacketed container with SS contact area, mirror polished for easy cleaning fitted with flush type valve for discharge of product
SS basket for retention of grinding media - non clogging screen - maximum screen area for high flow circulation of mill base.
Built in Hydraulic power pack
Electric control panel with safety interlocks
AC frequency inverter for speed control
Optional flame proof motor / Flame proof push button Station & PLC Control system

ADVANTAGES

Dispersion by Milling made easy
Complete batch operation
Convenient for Multiproduct Operation
Better Control on product quality
Top lid with charging port & temperature guage
Less cleaning time

APPLICATION

Web Offset Ink
Sheet Fed Ink
Screen Inks
Gravure Inks
Paint & Coatings
Biotech specialities
Herbicide & Fungicide Concentrates
Adhesives & Resins
Heat Sensitive Speciality Coatings
Plastisols
Dyestuff Dispersions
Paper Coatings
Cocoa Products
Magnetic Coatings
Minerals

PRODUCT RANGE

Vertical Bead Mill
Triple Roll Mill
High Speed Disperser
Paste Mixer
Planetary
Vacuum Mixer
Twin Shaft Mixer
Reaction Vessels
Ball Mill
Double Cone Blender
Sigma Mixer
Ribbon Blender
Dispersers with Scrapers
Material Handling systems

BASKET MILL

Drive Power: 15 – 55 KW

Grinding chamber Cap: 11 to 55 Liter

Batch Size: 100 to 1500 Liter
